The Future of Manufacturing Starts Today
The future of manufacturing is defined not only by speed, but by
creativity, engineering and sustainability. OTOSTECH stands at the center of
this transformation. With our 8×3 meter rail-mounted robotic additive
manufacturing line and two 3×3 meter fixed production cells, we eliminate the
limits of scale, speed and flexibility for designers, engineers and
manufacturers.
With these systems, we do not only produce plugs and molds. We
manufacture the products of the future today, including electric boats,
autonomous vehicle bodies, modern furniture, artistic surfaces and defense
systems.
“We do not just manufacture. We shape ideas.
Each layer carries the form of the future into the present.”
TECHNICAL INFRASTRUCTURE
Additive Manufacturing at Industrial Scale
Production Volume (X–Y–Z)8,000 × 3,000 × 2,000 mm3,000 × 3,000 × 2,000 mm
Material TypeThermoplastic pelletsThermoplastic pellets
Extrusion Capacity25 kg/hour12–15 kg/hour
Layer Thickness1–5 mm0.5–3 mm
Dimensional Tolerance±0.3 mm±0.2 mm
Material OptionsABS, PETG, CF-PETG, GF-PP, PEIABS, PETG, CF-PETG, GF-PP
Control SystemKUKA KRC4 + Siemens NX CAMKUKA KRC4 + PowerMill Robot
Finishing26 m CNC + Epoxy + Coating26 m CNC + Epoxy + Coating
Otostech’s robotic production infrastructure operates up to five times faster than traditional modeling processes and is among the few systems capable of single-piece production up to 8 meters.
These systems combine design freedom and manufacturing capability in one platform, enabling the production of large-scale, geometrically complex and structurally robust components.
PRODUCTION PROCESS
Layer by Layer Precision

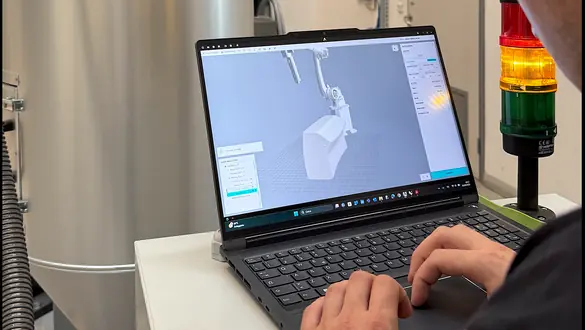

Digital Modeling and
Engineering Simulation
Every project begins with digital accuracy.
Layer strategies are optimized through:
- Infill ratios
- Extrusion temperature profiles
- Cooling curves
- Deformation simulations

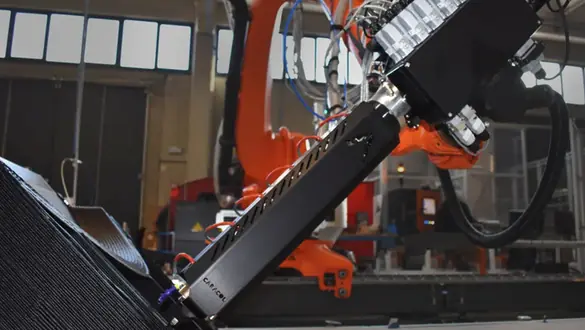

Robotic Extrusion –
Additive Manufacturing
KUKA robots process thermoplastic pellets at temperatures between 220 and 380°C, depositing material layer by layer. The 8×3 m rail system enables single-piece production up to 8 meters.
The system continuously monitors layer temperature, extrusion flow rate and speed parameters, ensuring structural integrity and surface consistency.
Advantages:
- Single-piece
production up to 8 meters
- 60
to 70 percent shorter production time
- Minimal
material waste below 10 percent
- 24-hour
continuous production
- Fully
traceable process data
“Our robots do not work with speed alone, but with precision.”
“Not every layer is the same, because every layer is an engineering decision.”

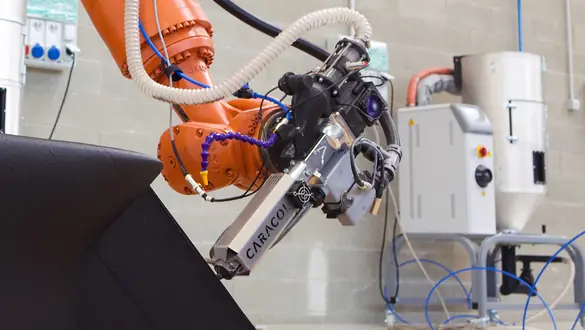

Multi-Material Production
(Hybrid Printing)
OTOSTECH systems can process different thermoplastics within a single structure. Carbon-reinforced CF-PETG can be used in structural zones, while lightweight and machinable materials such as PETG or PLA are applied to outer surfaces.
This enables optimized strength-to-weight performance within a single component.

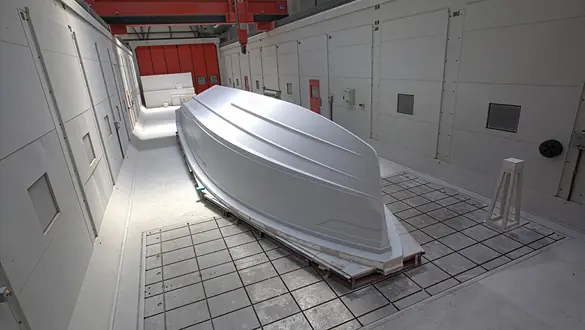

CNC Finishing –
Completing Precision
The speed of additive manufacturing is complemented by CNC machining. OTOSTECH’s 26 m 5-axis CNC line processes printed surfaces with ±2 mm tolerance, achieving final geometry and assembly-ready surfaces.
The result is A-Class surface quality, ready for direct integration into production.

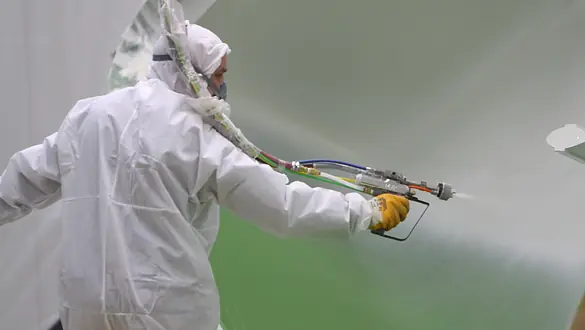

Epoxy Coating,
Sanding and Painting
After CNC processing, surfaces are coated with epoxy to eliminate porosity. Sanding, primer and final coating processes enhance both aesthetics and durability.
Coating systems are UV-resistant, heat-resistant and designed for long-term performance.
INDUSTRY APPLICATIONS
Future Solutions Across Industries
OTOSTECH’s robotic additive manufacturing systems provide not only production capability, but also a platform for innovation and product development across multiple industries.
Marine and Yacht Manufacturing
- Hull, deck and superstructure plugs
- Lightweight composite furniture molds
- Single-piece carbon fiber components
- Water and UV-resistant exterior surfaces
Automotive and Mobility
- RTM molds and exterior panel models
- Autonomous vehicle prototypes
- Aerodynamic test bodies
- Electric vehicle battery enclosures
Defense and Aerospace
- Lightweight structural components and radar-absorbing enclosures
- Molds for unmanned aerial and marine vehicles
- Sensor-integrated surfaces
Industrial Manufacturing and Machinery
- Jigs, fixtures and tooling systems
- Test molds for process optimization
- Custom adapter systems for robotic production lines
Furniture and Interior Design
- Organic-form seating systems
- Composite interior panels and surface solutions
- 3D printed decorative elements
- Custom-designed concept furniture
Architecture, Art and Design
- Free-form façade elements
- Public art installations
- Architectural surfaces and sculptural prototypes
Energy, Research and Innovation
- Wind turbine blade plugs
- Hydrodynamic testing models
- Laboratory-scale prototype systems
OTOSTECH’s 8×3 m rail system and 3×3 m fixed robotic additive manufacturing systems redefine production.
Speed, flexibility, precision and design freedom are now integrated within a single platform.
For us, every production process is an engineering experience, a design narrative and a step forward in innovation.
